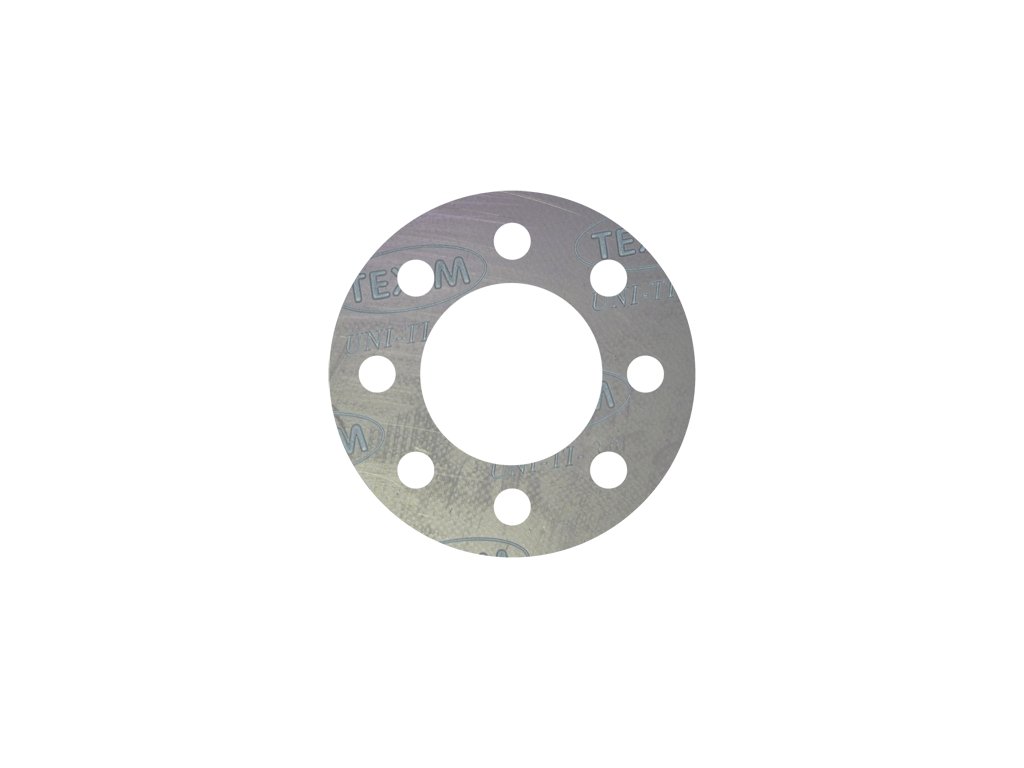

Texim® UNI-S

Brand: TEXIM

Temperature resistance up to 450°C. Graphite reinforcement plate.
GO TO THE ESHOP

Detailed information

Product detailed description

Uses:
  • material resists high temperatures
  • good chemical resistance (pH 0 - 14) for all working substances except for highly oxidizing ones
  • suitable for the production of gaskets, liner plates, camprofile gaskets, easy to machine but brittle

Can not be used: In environments of royal jelly, oleo, nitric acid, oxygen above 350°F., bromine, fluorine, chlorine, chlorine dioxide and sulfur dioxide, fused chloride and potassium nitrate, hydrogen peroxide

Ingredients:
  • Plate made of expanded graphite without reinforcement by any insert
Products:
  • 1000x1000mm plates
  • Thicknesses 1mm; 1.5mm; 2mm

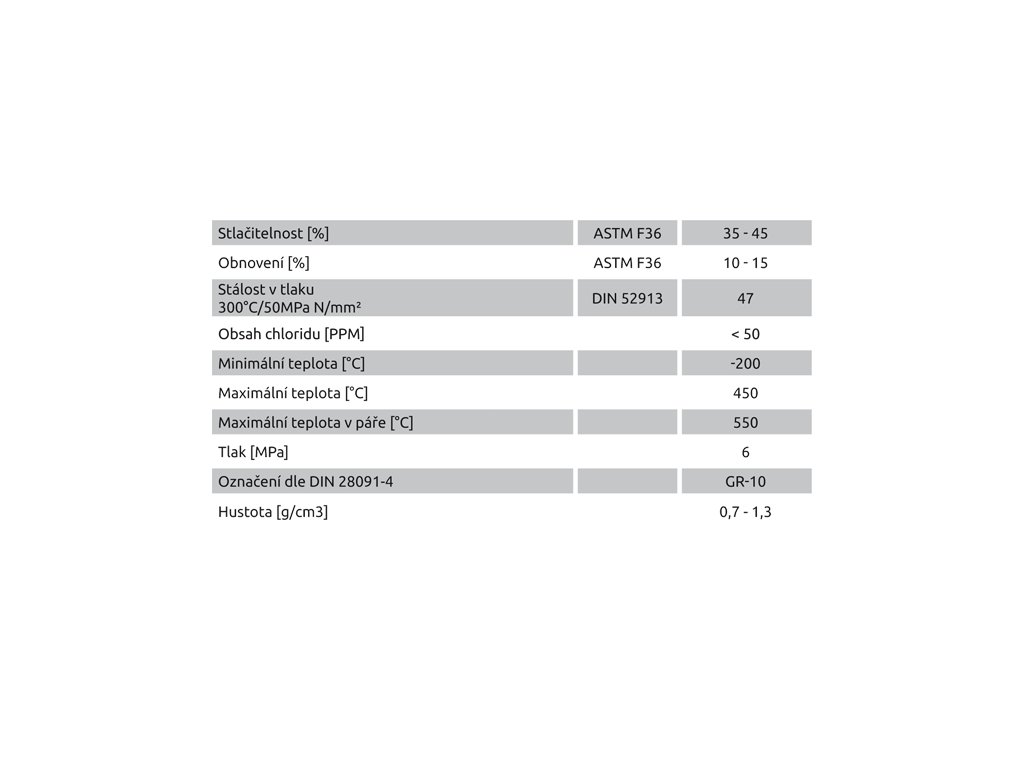

Additional parameters

Category: Compressed fibre sheets
Maximum constant temperature: 450°C
Maximum pressure: 60bar
In compliance with FDA: No
