    Home / Gland packings / Gland packings pumps

    Gland packings for dynamic use

    fittings piston
    pump    		 rotary
    pump    		 circumferential
    speed
    TYPE DESCRIPTION TEMPERATURE pH P max P max P max S max
    °C bar bar bar m/s
    BL01 cotton tallow impregnation -10 to 80 6 - 9 50 15 10 10
    BP02 Cotton paraffin impregnation -10 to 100 6 - 9 60 10 10 5
    BG04 Cotton graphite with rolling oil -10 to 80 6 - 9 60 10 10 10
    BTG08 Cotton Teflon with graphite -10 to 120 6 - 9 60 10 10 10
    BT09 Cotton Teflon -10 to 120 4 - 11 60 15 10 10

    SG04 Graphite glass with cylindrical oil -40 to 180 3 - 12 200 50 10 10
    ST09L Teflon glass -50 to 260 2 - 12 60 40 20 10
    SGT08 glass graphite and ptfe impregnation -200 to 290 2 - 12 200 80 50 10
    SG774 glass graphite and ptfe impregnation 480 3 - 12 150 80 50 15

    AT803L Teflon acrylic -100 to 260 2 - 12 100 80 50 12
    A808 Acrylic PTFE and graphite impregnation -50 to 250 3 - 11 60 40 20 10
    AG04 acrylic graphite impregnation -100 to 180 3 - 11 60 40 20 10
    N08L Novoloid graphite and ptfe impregnation -100 to 280 1 - 13 80 25 25 15
    N09L Novoloid ptfe impregnation -100 to 250 1 - 13 100 50 25 10

    T00L Teflon silicone oil -200 to 280 0 - 14 30 20 10
    T00D Teflon ptfe dispersion -200 to 280 0 - 14 250 150 2
    TG323 Teflon with graphite -200 to 280 0 - 14 200 100 35 25
    TGA726 Teflon graphite aramid -100 to 280 0 - 14 250 150 35 20
    TGA801 Teflon graphite aramid in corners -100 to 280 3 - 12 350 250 30 20
    TGA801Z Teflon graphite aramid -100 to 250 2 - 12 100 30 20
    TA802 Teflon aramid in corners -100 to 280 2 - 12 180 100 30 12
    TA626 Teflon aramid -100 to 280 0 - 14 250 150 35 12
    TG01 Teflon graphite -100 to 280 0 - 14 100 25 20
    TJ00L PTFE rubber core -40 to 120 0 - 14 2 2
    TJ323 gPTFE rubber core -40 to 120 0 - 14 2

    AR00L aramid silicone lubrication -100 to 280 3 - 12 100 50 15
    AR00D aramid -100 to 280 2 - 12 80 2
    AR09L aramid ptfe impregnation -100 to 260 2 - 12 100 80 30 20
    AR09D aramid ptfe impregnation -100 to 260 2 - 12 100 2
    AR08 aramid ptfe and graphite impregnation -100 to 400 2 - 12 100 50 50 15

    K303 carbon ptfe impregnation -200 to 450 0 - 14 200 45 20
    K304 carbon with wire ptfe impregnation -200 to 450 0 - 14 200 2
    G305 expanded graphite -200 to 450 0 - 14 250 30 20
    GI306 expanded graphite with stainless steel wire -200 to 450 0 - 14 400 200 2
    G345 graphite + ptfe and graphite impregnation -200 to 450 0 - 14 300 200 30 20



    35 items total

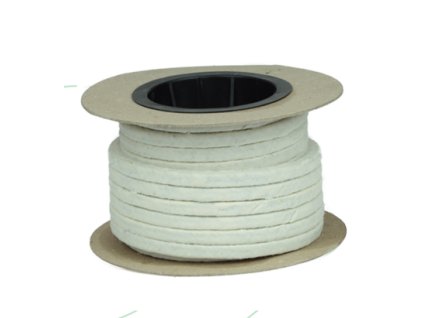

    těsnění Bavlna + lojová impregnace (BL01)
    Cotton + tallow impregnation (BL01)
    Detail

    Temperature resistance from -10°C to 80°C. Maximum circumferential speed up to 10 m/s.

    68

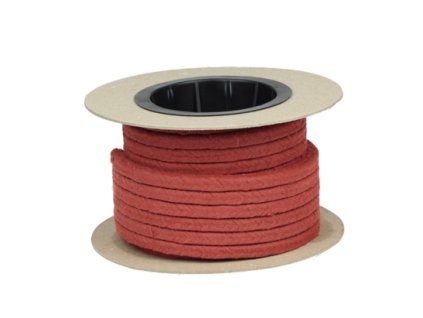

    těsnění Bavlna + parafínová impregnace (BP02)
    Cotton + paraffin impregnation (BP02)
    Detail

    Temperature resistance from -10°C to 100°C. Maximum circumferential speed up to 5 m/s.

    69

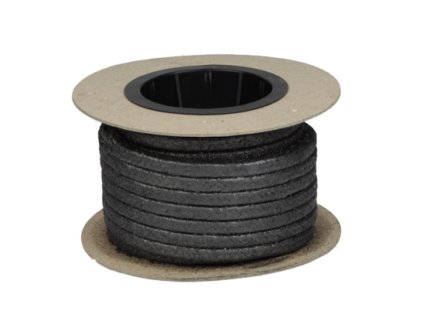

    těsnění Bavlna + grafit impregnace (BG04)
    Cotton + graphite impregnation (BG04)
    Detail

    Temperature resistance from -10°C to 80°C. Maximum circumferential speed up to 10 m/s.

    72
    těsnění Bavlna + PTFE impregnace s grafitem (BTG08)
    Cotton + PTFE impregnation with graphite (BTG08)
    Detail

    Temperature resistance from -10°C to 120°C. Maximum circumferential speed up to 10 m/s.

    71

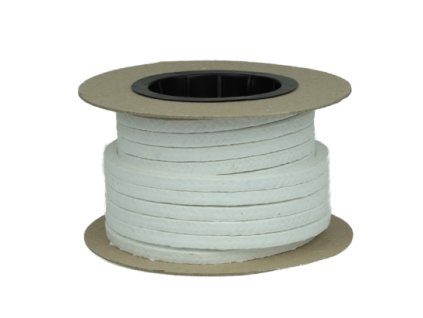

    těsnění Bavlna + PTFE impregnace se silikonovým olejem (BT09)
    Cotton + PTFE impregnation with silicone oil (BT09)
    Detail

    Temperature resistance from -10°C to 120°C. Maximum circumferential speed up to 10 m/s.

    70

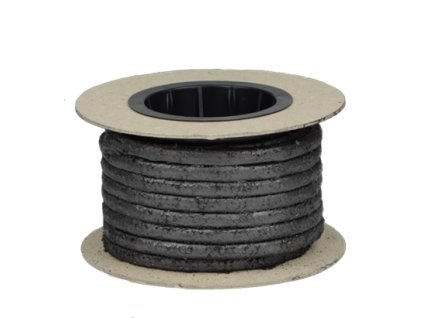

    těsnění Sklo + grafitová impregnace (SG04)
    Glass + graphite impregnation (SG04)
    Detail

    Temperature resistance from -40°C to 180°C. Maximum circumferential speed up to 10 m/s.

    73

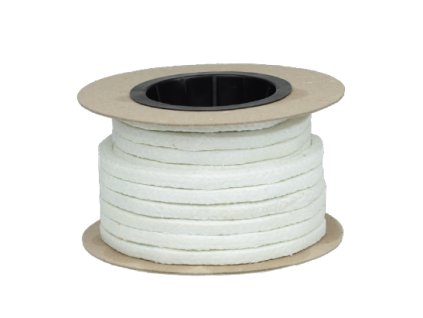

    těsnění Sklo + teflonová impregnace (ST09L)
    Glass + teflon impregnation (ST09L)
    Detail

    Temperature resistance from -50°C to 260°C. Maximum circumferential speed up to 10 m/s.

    75

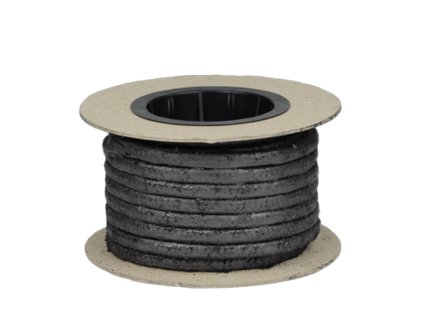

    těsnění Sklo + grafito-teflonová impregnace (SGT08)
    Glass + graphite-teflon impregnation (SGT08)
    Detail

    Temperature resistance from -200°C to 290°C.

    74

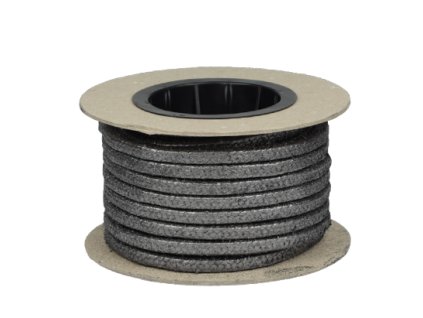

    těsnění Sklo + grafitová a PTFE impregnace (SG774)
    Glass + graphite and PTFE impregnation (SG774)
    Detail

    Temperature resistance up to 480°C . Maximum circumferential speed up to 15 m/s.

    115
    těsnění Akryl + teflonová impregnace se silikonovou lubrikací (AT803L)
    Acrylic + teflon impregnation with silicone lubrication (AT803L)
    Detail

    Temperature resistance from -100°C to 260°C. Maximum circumferential speed up to 12 m/s.

    76
    těsnění Akryl + PTFE a grafit impregnace (A808)
    Acrylic + PTFE and graphite impregnation (A808)
    Detail

    Temperature resistance from -50°C to 250°C. Maximum circumferential speed up to 10 m/s.

    101
    těsnění Akryl + grafit impregnace (AG04)
    Acrylic + graphite impregnation (AG04)
    Detail

    Temperature resistance from -100°C to 180°C. Maximum circumferential speed up to 10 m/s.

    100

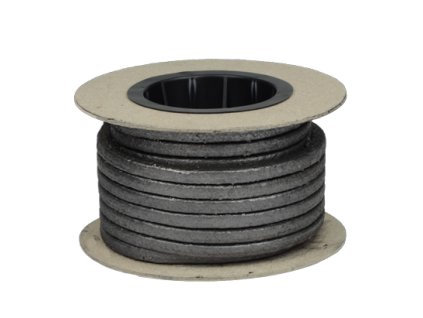

    těsnění Novoloid + grafitová a PTFE impregnace (N08L)
    Novoloid + graphite and PTFE impregnation (N08L)
    Detail

    Temperature resistance from -100°C to 280°C. Maximum circumferential speed up to 15 m/s.

    113

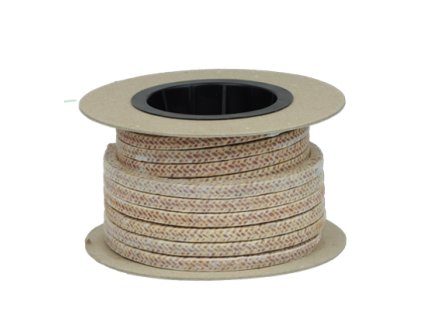

    těsnění Novoloid + PTFE impregnace (N09L)
    Novoloid + PTFE impregnation (N09L)
    Detail

    Temperature resistance from -100°C to 250°C. Maximum circumferential speed up to 10 m/s.

    114

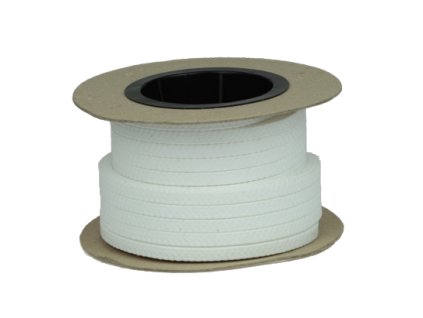

    těsnění Teflon s lubrikací (T00L)
    Teflon with lubrication (T00L)
    Detail

    Temperature resistance from -200°C to 280°C. Maximum circumferential speed up to 10 m/s.

    79
    těsnění Teflon bez lubrikace (T00D)
    Teflon without lubrication (T00D)
    Detail

    Temperature resistance from -200°C to 280°C. Maximum circumferential speed up to 2 m/s.

    78
    těsnění Teflon s grafitem (TG323)
    Teflon with graphite (TG323)
    Detail

    Temperature resistance from -200°C to 280°C. Maximum circumferential speed up to 25 m/s.

    80

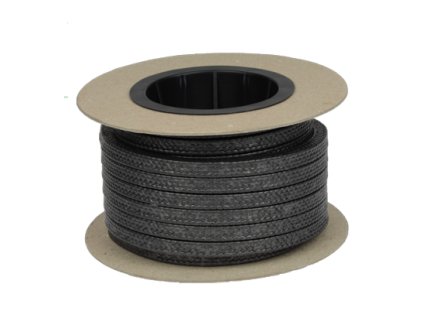

    těsnění Teflon s grafitem a aramidem (TGA726)
    Teflon with graphite and Aramid (TGA726)
    Detail

    Temperature resistance from -100°C to 280°C. Maximum circumferential speed up to 20 m/s.

    81

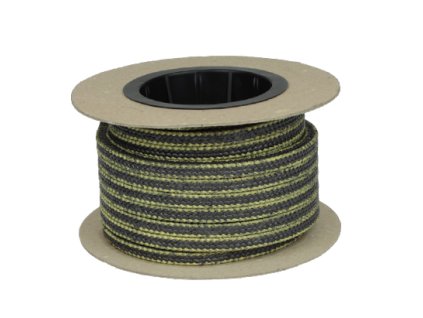

    těsnění Teflon s grafitem a aramidem v rozích (TGA801)
    Teflon with graphite and aramid in the corners (TGA801)
    Detail

    Temperature resistance from -100°C to 280°C. Maximum circumferential speed up to 20 m/s.

    83

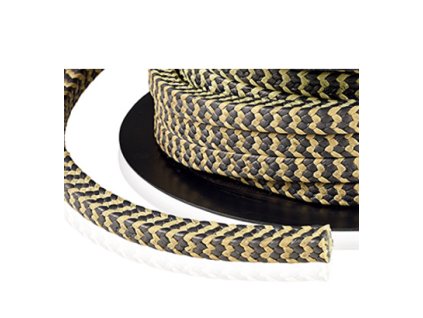

    těsnění Teflon se zapouzdřeným grafitem (TGA801Z)
    Teflon with encapsulated graphite (TGA801Z)
    Detail

    Temperature resistance from -100°C to 250°C. Maximum circumferential speed up to 20 m/s.

    134

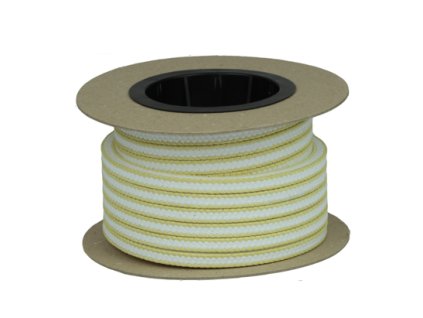

    těsnění Teflon (TA802)
    Teflon (TA802)
    Detail

    Temperature resistance from -100°C to 280°C. Maximum circumferential speed up to 12 m/s.

    132
    těsnění Teflon s aramidem (TA626)
    Teflon with aramid (TA626)
    Detail

    Temperature resistance from -100°C to 280°C. Maximum circumferential speed up to 12 m/s.

    131
    těsnění Teflon s grafitem (TG01)
    Teflon with graphite (TG01)
    Detail

    Temperature resistance from -100°C to 280°C. Maximum circumferential speed up to 20 m/s.

    133

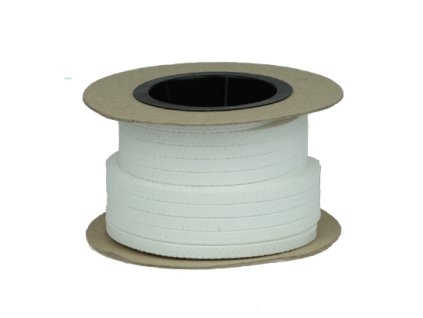

    těsnění Teflon s pružným jádrem (TJ00L)
    Teflon with flexible core (TJ00L)
    Detail

    Temperature resistance from -40°C to 120°C. Maximum circumferential speed up to 2 m/s.

    135

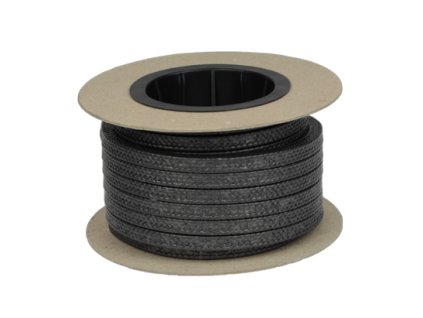

    těsnění Teflon se zapouzdřeným grafitem s pružným jádrem (TJ323)
    Teflon encapsulated graphite with flexible core (TJ323)
    Detail

    Temperature resistance from -40°C to 120°C.

    136

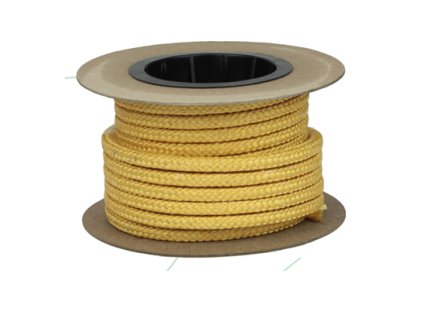

    těsnění Aramid + impregnace PTFE (AR00L)
    Aramid + PTFE impregnation (AR00L)
    Detail

    Temperature resistance from -100°C to 280°C. Maximum circumferential speed up to 15 m/s.

    103
    těsnění Aramid + vnitřní impregnace PTFE (AR00D)
    Aramid + PTFE internal impregnation (AR00D)
    Detail

    Temperature resistance from -100°C to 280°C. Maximum circumferential speed up to 2 m/s.

    102
    těsnění Aramid + PTFE impregnace (AR09L)
    Aramid + PTFE impregnation (AR09L)
    Detail

    Temperature resistance from -100°C to 260°C. Maximum circumferential speed up to 20 m/s.

    106

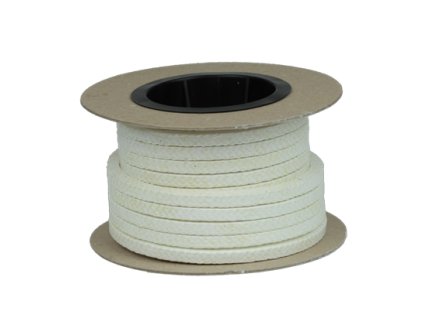

    těsnění Aramid + PTFE impregnace (AR09D)
    Aramid + PTFE impregnation (AR09D)
    Detail

    Temperature resistance from -100°C to 260°C. Maximum circumferential speed up to 2 m/s.

    105

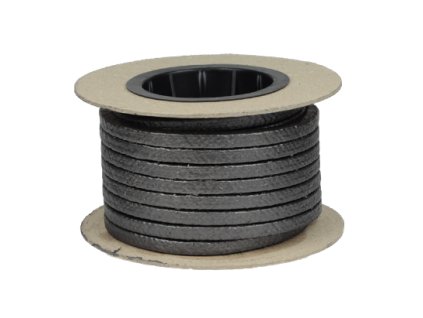

    těsnění Aramid+ PTFE a grafit impregnace (AR08)
    Aramid + PTFE and graphite impregnation (AR08)
    Detail

    Temperature resistance from -100°C to 400°C. Maximum circumferential speed up to 15 m/s.

    104

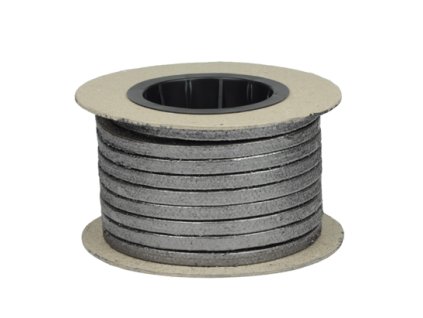

    těsnění Karbon + PTFE impregnace (K303)
    Carbon + PTFE impregnation (K303)
    Detail

    Temperature resistance from -200°C to 450°C. Maximum circumferential speed up to 20 m/s.

    110
    těsnění Karbon + PTFE impregnace (K304)
    Carbon + PTFE impregnation (K304)
    Detail

    Temperature resistance from -200°C to 450°C. Maximum circumferential speed up to 2 m/s.

    111

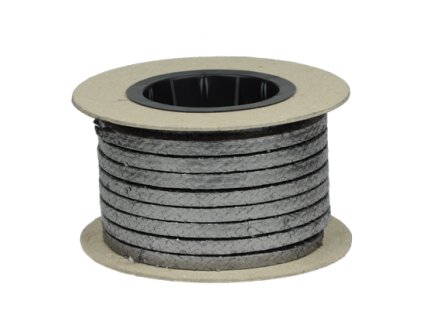

    těsnění Expandovaný grafit (G305)
    Expanded graphite (G305)
    Detail

    Temperature resistance from -200°C to 450°C. Maximum circumferential speed up to 20 m/s.

    85
    těsnění Expandovaný grafit s nerez drátem (GI306)
    Expanded graphite with stainless steel wire (GI306)
    Detail

    Temperature resistance from -200°C to 450°C. Maximum circumferential speed up to 2 m/s.

    86

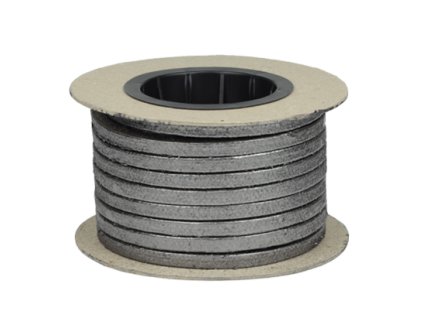

    těsnění Grafit + PTFE a grafit impregnace (G345)
    Graphite + PTFE and graphite impregnation (G345)
    Detail

    Temperature resistance from -200°C to 450°C. Maximum circumferential speed up to 20 m/s.

    108
